Last time
I ranted about one thing that is wrong with rrdtool.
It turns out that I, unfortunately, have more gripes
to share. Let’s talk today about the legend control.
The rrdtool’s language for controlling how the graph
is going to look and feel is pretty rich and complex.
Among other things, it has a bunch of graphing commands
that are able to manipulate the legend section of the graph.
Some of those commands do nothing else,
while the other commands only modify the legend
as a side effect, and primarily exist for
doing something else.

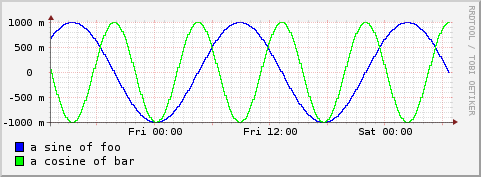

Let’s take as an example the graph below:
rrdtool graph x.png
--end 1235800000 --start end-150000
'DEF:data=some.rrd:data:AVERAGE'
'CDEF:sine=data,POP,1235800000,TIME,-,10000,/,SIN'
'LINE1:sine#0000ff:a sine of foo\l'
'CDEF:cosine=data,POP,1235800000,TIME,-,5000,/,COS'
'LINE1:cosine#00ff00:a cosine of bar'

The trouble is that there is no instruction which
can produce a so called “legend box” (a small blue
box next to the “a sine of foo” legend text)
without doing something else in the process.
All of the commands that actually graph something
can optionally produce a legend box, but there
is no other way to make it.

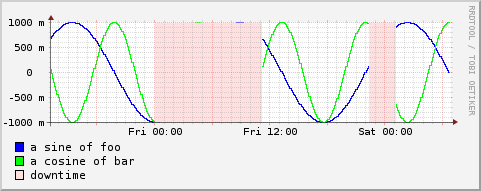

If we extend our sine example with some nice
downtime background (in Soviet Russia sines
can have a downtime!), we get a nice picture like this:
rrdtool graph x.png
--end 1235800000 --start end-150000
'DEF:data=some.rrd:data:AVERAGE'
'CDEF:downtime=data,0,0,IF,
TIME,1235769489,GE,TIME,1235779489,LE,*,
TIME,1235689489,GE,TIME,1235729489,LE,*,+,+'
'CDEF:sine=data,POP,1235800000,TIME,-,10000,/,SIN'
'LINE1:sine#0000ff:a sine of foo\l'
'CDEF:cosine=data,POP,1235800000,TIME,-,5000,/,COS'
'LINE1:cosine#00ff00:a cosine of bar\l'
'TICK:downtime#ffe0e0:1.0:downtime'

But let’s suppose that we’d also like to add background
coloring for uptime, and indicate that in a legend.
Let’s use another CDEF for uptime, which will be just
the opposite of our downtime CDEF:
rrdtool graph x.png
--end 1235800000 --start end-150000
'DEF:data=some.rrd:data:AVERAGE'
'CDEF:downtime=data,0,0,IF,
TIME,1235769489,GE,TIME,1235779489,LE,*,
TIME,1235689489,GE,TIME,1235729489,LE,*,+,+'
'CDEF:uptime=downtime,0,1,IF'
'CDEF:sine=data,POP,1235800000,TIME,-,10000,/,SIN'
'LINE1:sine#0000ff:a sine of foo\l'
'CDEF:cosine=data,POP,1235800000,TIME,-,5000,/,COS'
'LINE1:cosine#00ff00:a cosine of bar\l'
'TICK:uptime#e0ffe0:1.0:uptime'
'TEXTALIGN:left'
'TICK:downtime#ffe0e0:1.0:downtime'

Oops. Of course. The graphing commands are processed
in sequence, so the uptime “background” has obscured
our actual sinusoidal data!
We will have to put the uptime TICK before anything else
to avoid this:
rrdtool graph x.png
--end 1235800000 --start end-150000
'DEF:data=some.rrd:data:AVERAGE'
'CDEF:downtime=data,0,0,IF,
TIME,1235769489,GE,TIME,1235779489,LE,*,
TIME,1235689489,GE,TIME,1235729489,LE,*,+,+'
'CDEF:uptime=downtime,0,1,IF'
'CDEF:sine=data,POP,1235800000,TIME,-,10000,/,SIN'
'TICK:uptime#e0ffe0:1.0:uptime'
'LINE1:sine#0000ff:a sine of foo\l'
'CDEF:cosine=data,POP,1235800000,TIME,-,5000,/,COS'
'LINE1:cosine#00ff00:a cosine of bar\l'
'TICK:downtime#ffe0e0:1.0:downtime'

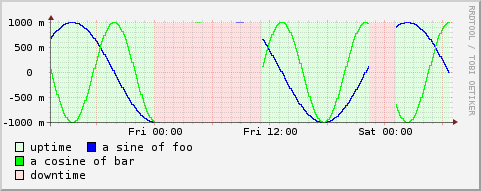

See the problem? Now the legend boxes are not in the
right order.
Naturally, it is pretty trivial to solve - we just remove
the legend (it is optional) from the uptime TICK,
and add another graphing command in the end with the
right legend text.
We’ll simply have to make sure that this “graphing command”
does not actually graph anything:
rrdtool graph x.png
--end 1235800000 --start end-150000
'DEF:data=some.rrd:data:AVERAGE'
'CDEF:downtime=data,0,0,IF,
TIME,1235769489,GE,TIME,1235779489,LE,*,
TIME,1235689489,GE,TIME,1235729489,LE,*,+,+'
'CDEF:uptime=downtime,0,1,IF'
'CDEF:sine=data,POP,1235800000,TIME,-,10000,/,SIN'
'TICK:uptime#e0ffe0:1.0'
'LINE1:sine#0000ff:a sine of foo\l'
'CDEF:cosine=data,POP,1235800000,TIME,-,5000,/,COS'
'LINE1:cosine#00ff00:a cosine of bar\l'
'TICK:uptime#e0ffe0:0.0:uptime'
'TEXTALIGN:left'
'TICK:downtime#ffe0e0:1.0:downtime'

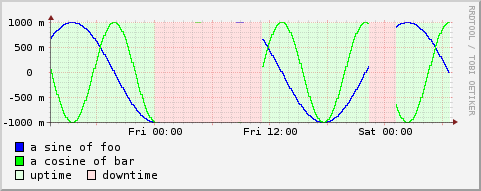

Just like the last time - the problem is easily solvable,
but it annoys me, since rrdtool again forces us to work
against it instead of working with us.
It would be nicer to have a way to put a legend
box where we want it in some more direct way
(maybe a variant of the COMMENT command)?
